Newton HydroCoat 313-WP Water Plug is a fast-setting, polymer compound that instantly stops running water or seepage through masonry or concrete substrates.
Newton HydroCoat 313-WP Water Plug becomes harder and more resistant when subjected to constant water pressure.

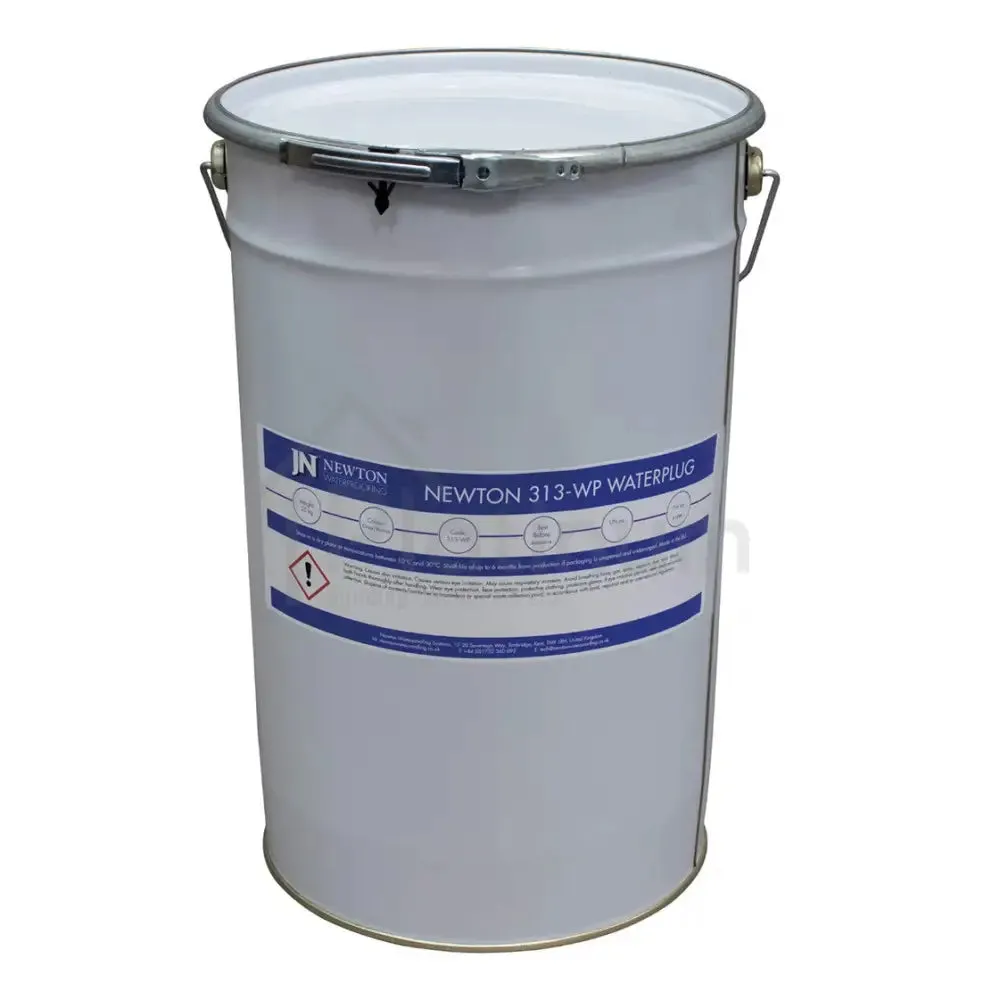

Supplied in 25Kg Buckets.
Description
Newton HydroCoat 313-WP Water Plug
Newton HydroCoat 313-WP Water Plug is a fast-setting, polymer compound that instantly stops running water or seepage through masonry or concrete substrates.
Newton HydroCoat 313-WP Water Plug becomes harder and more resistant when subjected to constant water pressure.
Newton HydroCoat 313-WP Water Plug is a non-shrink material that expands slightly and sets in about 1 minute and is fully cured in 4 minutes.
Lower ambient, substrate and water temperatures will slightly delay the set time and higher temperatures will accelerate the set time.
Typical Applications:
✔ Leak sealing prior to tanking with Newton Liquid Waterproofing Products.
✔ Sealing of leaks at wall / floor junctions.
✔ Sealing of leaking mortar joints.
✔ Leak sealing of cracks in masonry or concrete.
✔ Repair of construction faults such as honeycombing.
✔ Anchoring of bolts or posts.
✔ Controlling water ingress during sump installations.
Product Benefits:
-
Stops running water
-
Fibre reinforced
-
Polymer modified
-
Non-shrink and non-metallic
-
Exceptional durability
-
Lasts as long as the structure to which it is applied
-
Easy to use - No specialist skills or equipment required
Consumption:
1.75Kg = 1.0 litres
Compressive Load Capability:
-
1 Hour - 7.85 N/mm²
-
2 Hours – 12.75 N/mm²
-
1 Day – 29.43 N/mm²
-
28 Days – 44.14 N/mm²
Technical Data:
Application
Mixing:
Mix Newton HydroCoat 313-WP Water Plug with clean water only.
Add just enough water to form a putty consistency, about 1 part water to 5 parts powder by volume.
Do not use more Newton HydroCoat 313-WP Water Plug than can be placed in 3 minutes, whilst allowing for only a 30 second mixing period. Place with minimum working or rubbing.
Force Newton HydroCoat 313-WP Water Plug into the crack or hole by pushing firmly; using maximum pressure. Keep damp for at least 15 minutes to help curing.
Above Normal Temperatures
Newton HydroCoat 313-WP Water Plug begins to set very quickly when the temperature is above 25°C. For best results make sure product and mixing water are below 25°C at time of application, otherwise set will begin immediately and structural strength will be weakened.
To slow down the setting action during warmer conditions use iced water to the mix.
Note: Extreme weather conditions will delay or accelerate Newton HydroCoat 313-WP Water Plug setting time.
Application Method:
To help key the material always dovetail cut or cut square; do not use V-cut. Open the crack or hole by cutting to a minimum width and depth of 20mm. Flush away all cuttings and dust.
Sealing Wall / Floor Joints
Cut out the crack to a minimum width and depth of 20mm, while cutting back into the wall slightly. Flush away all cuttings and dust. Smooth out the crack by forcing a round tool inside. Form a fillet at the junction.
Sealing Against Flowing Water
Cut out the crack or hole to a minimum width and depth of 20mm. Dovetail cut if possible. Start at the top and force Newton HydroCoat 313-WP Water Plug into the crack.
At points of greater pressure, do not place into the opening immediately.
Form a ball in a gloved hand and then press firmly into the opening, holding in place until the mortar becomes hard. After stopping active water, evenly patch the surrounding wall surfaces.
When filling the cracks, start at the top and fill the crack downwards.
Repairing Leaking Mortar Joints and Cracks in Masonry Walls or Cracks in Concrete Walls
Cut out the defective mortar joints or cracks to a minimum width and depth of 20 mm. Dovetail cut if possible. Force Newton HydroCoat 313-WP Water Plug into the crack and keep damp for at least 15 minutes.
