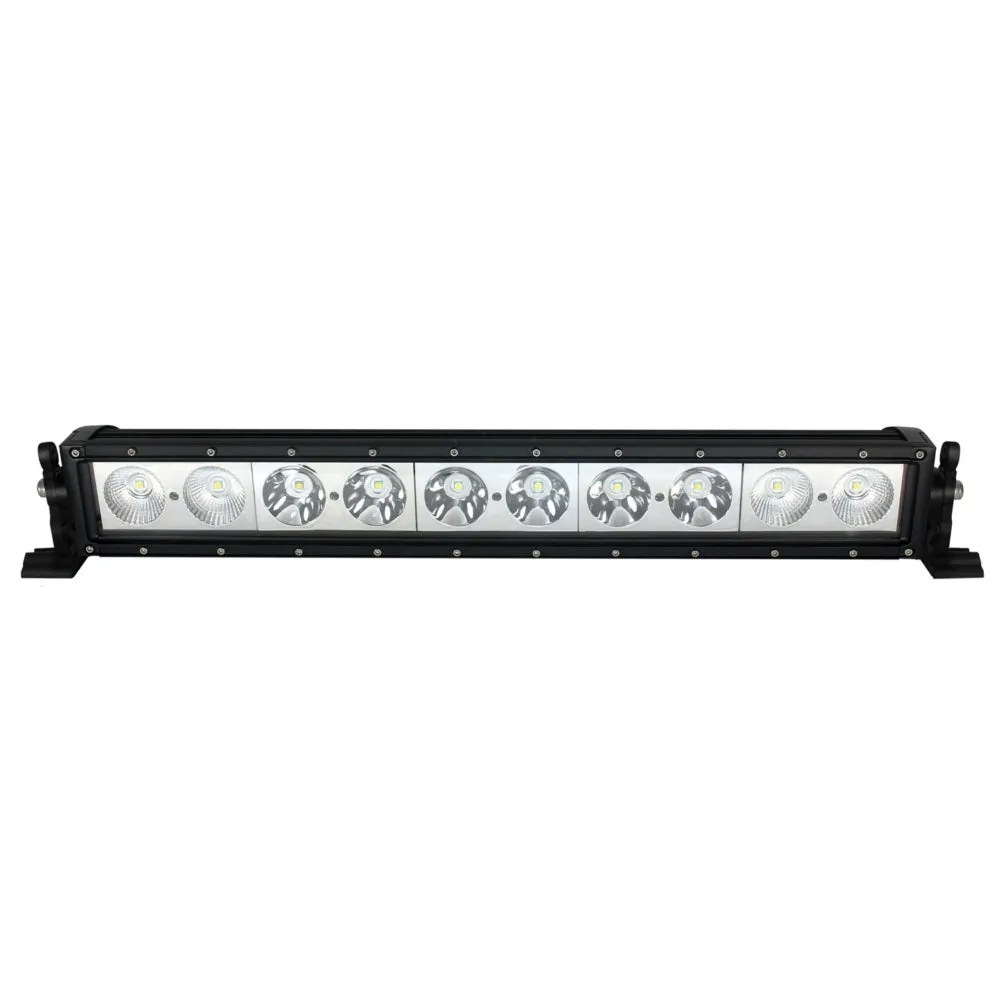

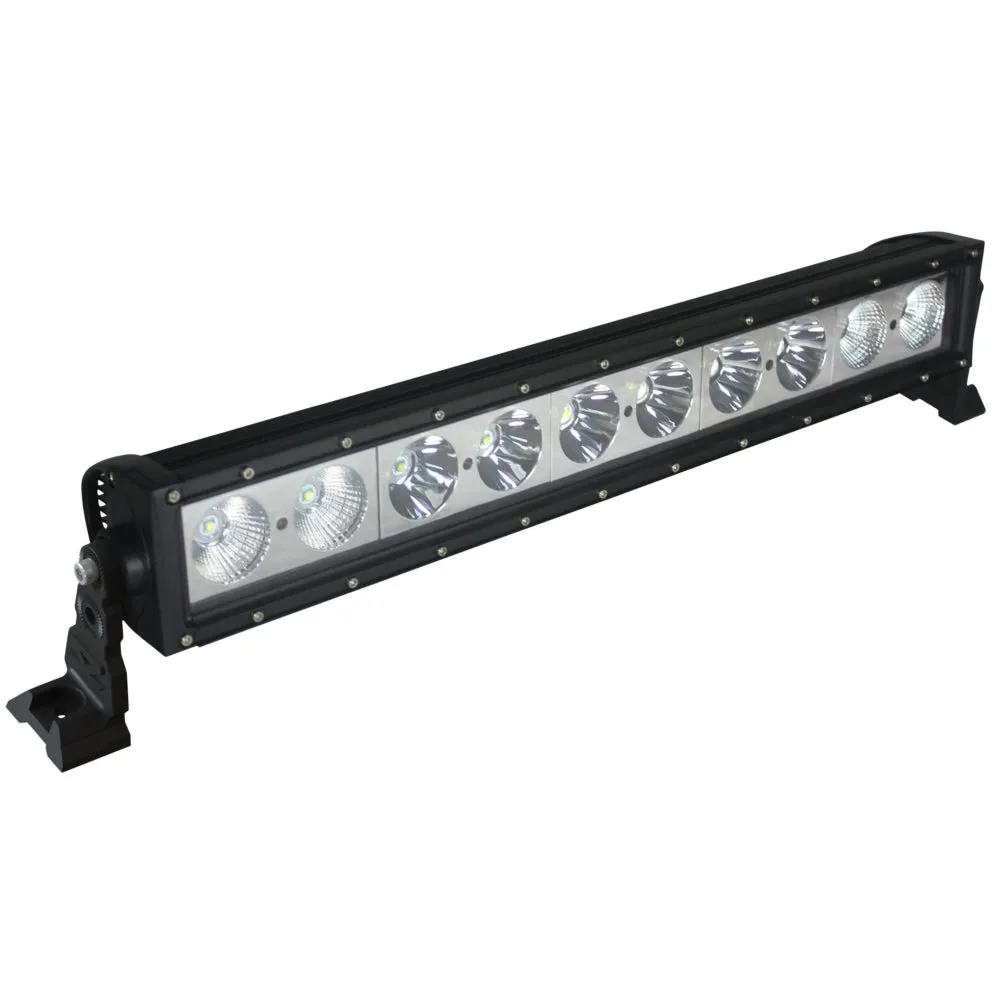

Seizmik 100W 22" LED Light Bar Combo
Universal fitment
Light Bar Features
Cree® High Intensity LEDs
Provide over 30,000 hours of useful light
Polycarbonate Lens
Abrasion & Shatter resistant, optically clear polycarbonate lens, Bayer Germany
Waterproof Enclosure
Custom molded silicone seal for 100% waterproof enclosure
Combo Beam Pattern
Combination flood & spot reflectors provide maximum spread & throw
Super Efficient LED Power
Super efficient LED driver circuitry passes 97% of the power directly to the LEDs
Light with Less Power
Hybrid reflector lens combo is 94% efficient for more light with less power
Multi-Volt Operation
Operating voltage 10~30V DC
Durable Housing
Heavy-duty aluminum housing
The Ultimate in Reliability
Damage to part of the light will only cause LEDs in that section to fail
Oversized Heat Sink
Custom designed to keep LEDs running cooler and brighter while lasting longer
Sealed DT Connectors
Easy and secure quick-snap connectors are gasket sealed for maximum weather protection
Professional Plug & Play Wiring Harness with On/Off Switch
Designed for ease of installation and comes with detailed step-by-step instructions
Light Specifications
| BRACKET MATERIAL | CAST ALUMINUM |
| REFLECTORS | UV COATED |
| LENS MATERIAL | SHATTER RESISTANT POLYCARBONATEBAYER® – GERMANY |
| HOUSING MATERIAL | ADC12 ALUMINUM |
| CONNECTORS | SEALED DT CONNECTOR |
| CERTIFIED WEATHER RATING | IP67 SALT & FOG ASTMB117 |
| CURRENT DRAW | 10-30v DC REVERSE POLARITY PROTECTED |
| BEAM PATTERN | COMBINATION FLOOD & SPOT |
| COLOR TEMPERATURE | 6000K |
| OPERATING TEMP. | -4˚ F ~ 122˚ F |
| LED QUANTITY | 10 X 10w HIGH INTENSITY CREE® LEDs |
| OPERATING VOLTAGE | 7.1A@12V DC 3.5A@24V DC |
| LIFESPAN | 30,000 HOURS |
| LUMENS | 9000 lm |
| LED POWER | 100W |
